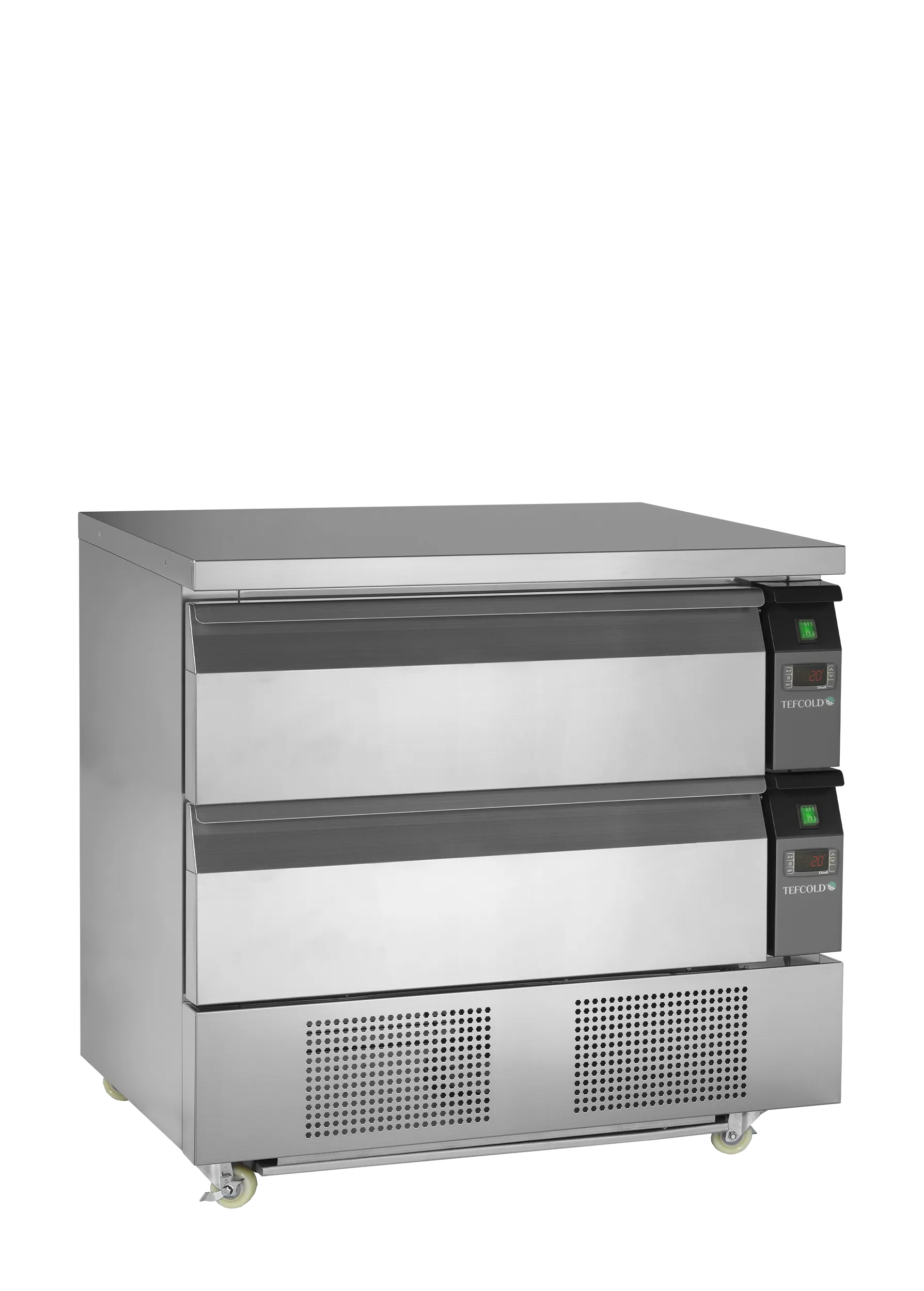

Grill Refrigerator-Freezer Unit with 2 GN 2/1 Drawers, UD2-22, Tefcold

Grill Refrigerator-Freezer Unit

Uni-drawer for GN 1/1 containers

The UD Uni-Drawer is equipped with a smart system that allows you to switch between refrigeration and freezing with the simple push of a button. It is ideal for compact, professional kitchens where space needs to be utilized to the fullest. Each module provides precise temperature control and can be set from -22 to -18 °C for freezing or +2 to +8 °C for refrigeration.

The drawer is designed for GN containers with a depth of up to 150 mm, but can also be used without Gastronorm containers. The reinforced top panel can support heavy kitchen equipment, such as deep fryers and ovens, and turns valuable counter space into an additional work surface.

With the UD uni-drawer, you get a flexible and robust solution with reliable performance—developed to meet the demands of fast-paced professional kitchens.

Product Features:
Two drawers that can be switched between refrigeration and freezing

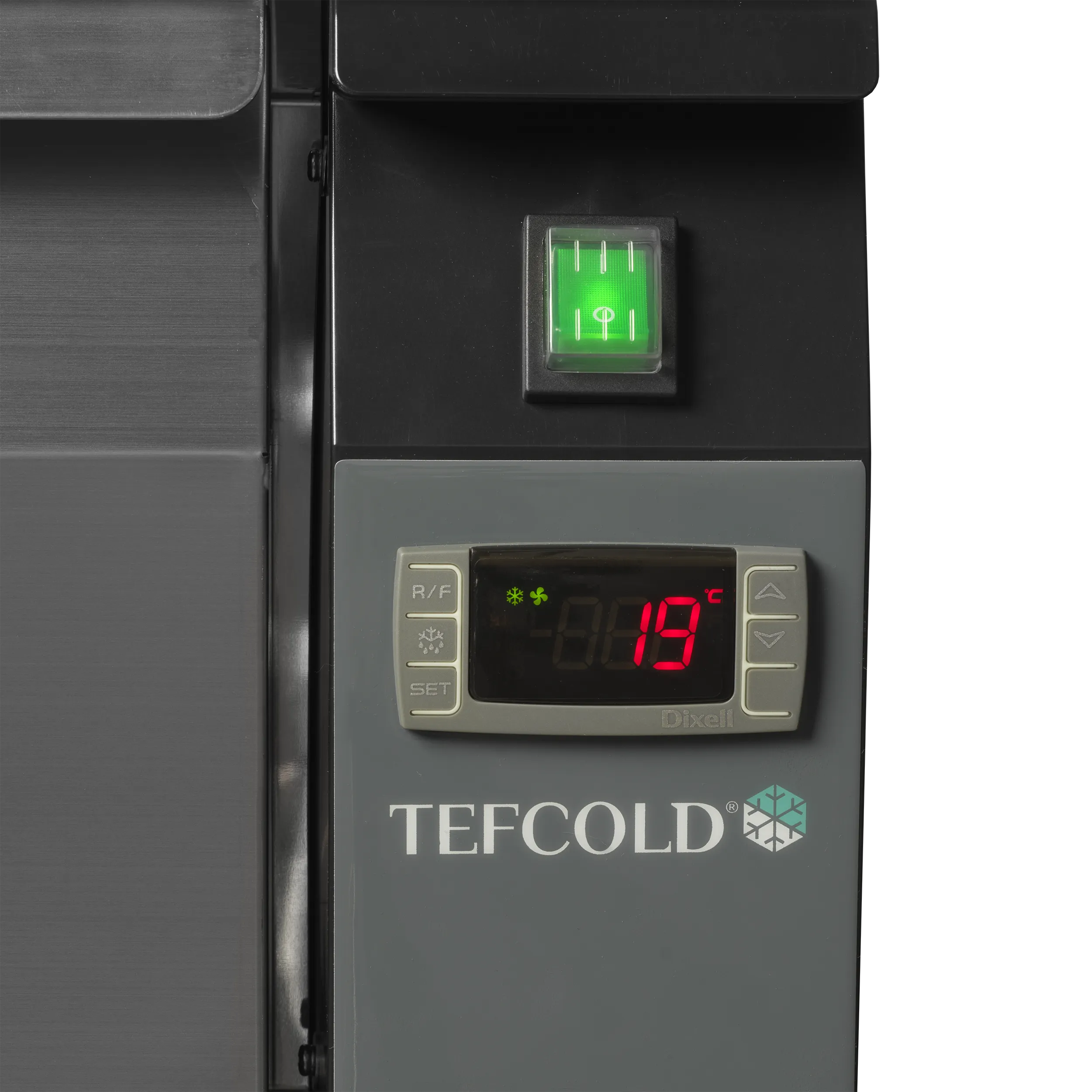

Easy to switch between refrigeration and freezing
Maximized storage space

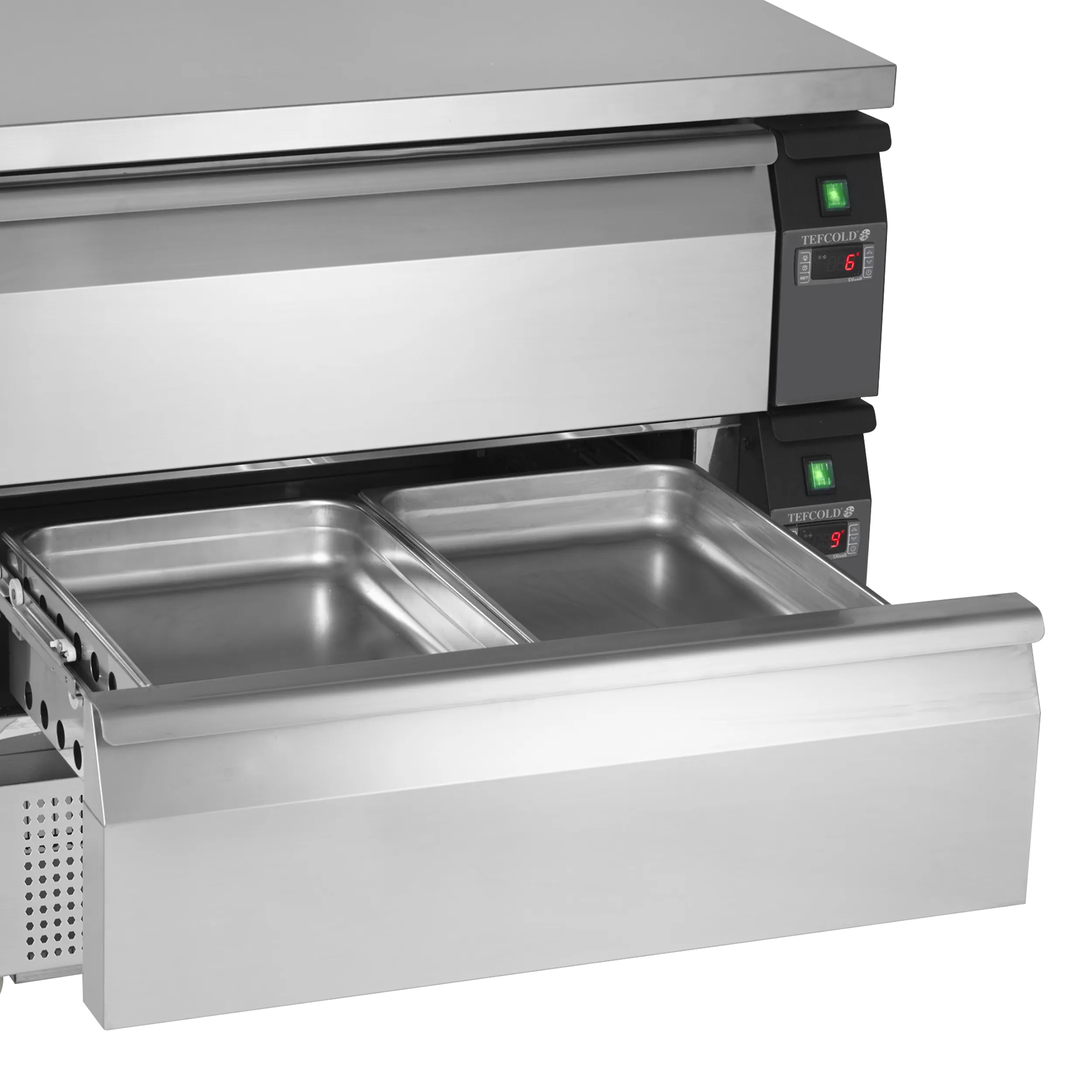

Fits GN containers (maximum depth 150 mm)
Ventilated cooling for rapid cooling and temperature maintenance
Automatic defrost
Maximum load capacity per drawer: 60 kg
Maximum load capacity for the tabletop model: 240 kg

Dimensions and Capacity
Gross/net weight: 125 / 113 kg
Gross/net volume: 179 / 102 L
Temperature range: +2 to +8 / -18 to -22°C
Insulation density: 38 kg/m³
Climate class: 4

Design and Materials
Exterior finish: SS304
Interior finish: SS304
Interior light: No
Lock: No
Drawers: 2
Caster wheels: Caster wheels

Cooling and features
Cooling type: Ventilated
Refrigerant: R290
Refrigerant charge: 2x70 g
Thermometer: No

Power and Energy Consumption
Energy efficiency class: D
Max. ambient temperature: +30°C, 55% RH
Energy consumption: 5.67 kWh/24 hours
Annual energy consumption: 1,638.85 kWh/year
Input Power: 460 W
Voltage / Frequency: 220–240 V / 50 Hz
Noise level: 42 dB(A)

Dimensions
External dimensions (WxDxH): 905 x 700 x 870 mm
Internal dimensions (WxDxH): 675 x 565 x 470 mm
