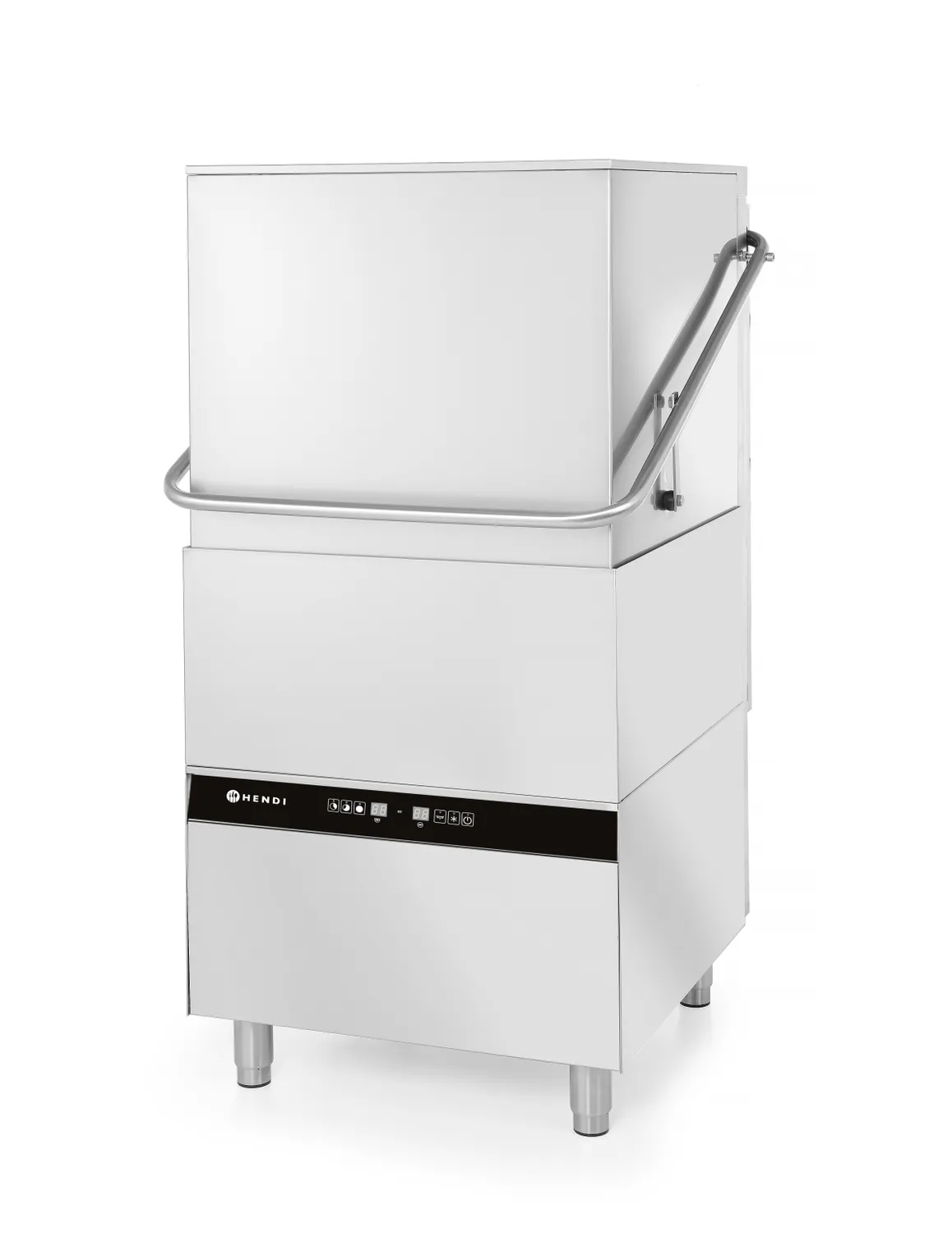

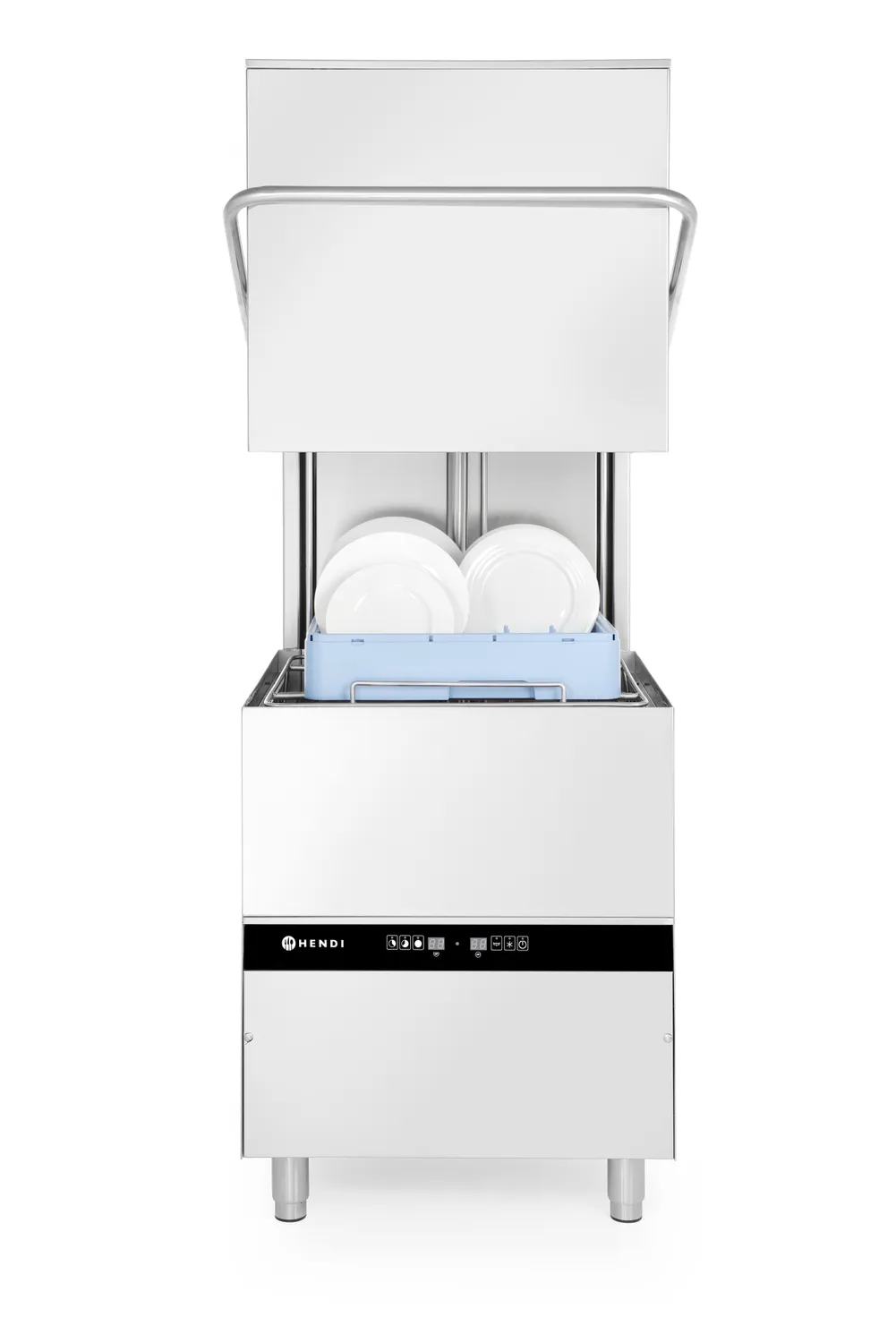

Hood dishwasher
Extremely easy to use, clean and maintain
Ideal for washing plates, cutlery, glasses, cups, trays, GN 1/1 containers
Electronic control
Dishwasher detergent and rinse aid compartment and drain pump as standard
Maximum height of washed plates 400 mm
Maximum height of glasses to be cleaned 395 mm
Electronic touch screen control panel
AISI 304 stainless steel housing
Stainless steel upper and lower wash and rinse arms
Lifting the hood is facilitated by built-in springs
Washing water temperature 60°C
Rinse and scald water temperature 85°C
Hot water capacity and power 13.5 l / 7.5 kW
Tank capacity and power 68 l / 6.0 kW
Cleaning pump power 1.5 kM
Electronic water thermometers for water heater and bathtub separately
Safety thermostat for water heater / bath tub up to 105°C / 99°C
Pump sealing degree: IP 44
Corner installation of dishwasher possible
Water connection: ¾"
Weight: 131,5 kg
Adjustable stainless steel feet from 100 to 150 mm
FEATURES:
Three washing programs: 60, 120, 240 s
Washing program for the dishwasher compartment
Possibility of final rinse with cold water - particularly useful when washing glasses
"THERMO-PROTECTOR" system to prevent rinsing with cold water
8-point self-diagnosis system
"SOFT START" function to start the water pump at a lower pressure and raise it gradually so as not to damage fragile dishes
Hatch with microswitch for operation when the hood is raised
ECO function - reduces power consumption when the appliance is not used for more than 15 minutes
EQUIPMENT:
1 universal glass basket 500x500x(H)105 mm
1 basket with pins for deep and shallow plates with 5x8 pcs, 500x500x(H)105 mm
1 cutlery basket 110x110x(H)130 mm
Rinse aid and detergent compartment
Drain pump
Water hose 1.5 m long, with ¾" internal thread.
Drain hose
Electric cable without plug
Connection values: 8.6 kW, 400 V, 50 Hz
Dimensions: 750x880x1412 mm
