Fan hood without engine, depth 110 cm, width 100-300 cm

Fan hood without engine

Stainless steel fan cover, with lighting, without built-in engine
from 100x110 mm
Capacity: 1400 m3 / h and up

• Size: according to choice
• Kg: 41.00, with additions depending on width
• Volt: 230
• KW el .: 0,184
• Frequency: 50 Hz
• Phase: 1F + N
• Labyrinth filter
• Fat drainage valve
• Mounting kit included
• Point welded, withstand pressure up to 60 Pa
• Depth 110 cm, height 45 cm.
• Can be ordered in different lengths from 100 cm to 300 cm

Choose from the following items, depth 110 cm, width 100-300 depth, combine with engine as below:

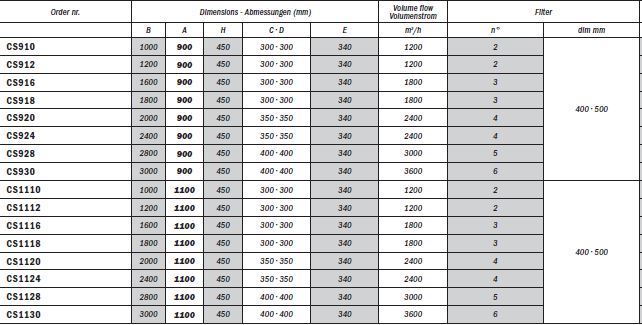

Part No. Width / cm m3 / h Buy to engine:

CS1110 100 1200 DBZ0017
CS1112 120 1200 DBZ0017
CS1116 160 1800 DBZ0017
CS1118 180 1800 DBZ0017
CS1120 180 2400 DBZ0019
CS1124 220 2400 DBZ0019
CS1128 280 2600 DBZ0019
CS1130 300 2800 DBZ0019

Go to the fan engine tab.
