Fan hood without engine, deep 90 cm, extra wide: 200-300 cm

Fan hood without engine

Stainless steel fan cover with lighting, extra wide without built-in engine
from 200x900 mm
Capacity: 1400 m3 / h and up

• Size: according to choice
• Kg: 41.00, with additions depending on width
• Volt: 230
• KW el .: 0,184
• Frequency: 50 Hz
• Phase: 1F + N
• Labyrinth filter
• Fat drainage valve
• Mounting kit included
• Point welded, withstand pressure up to 60 Pa
• Depth 90 cm, height 45 cm.
• Can be ordered in different lengths from 200 cm to 300 cm

Choose from the following items, depth 90 cm, width 200-300 depth, combine with engine as below:

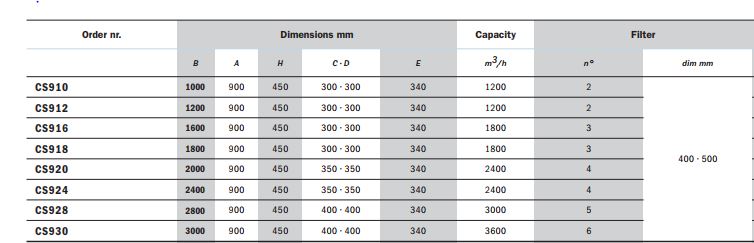

Part No. Width / cm m3 / h Buy to engine:
CS920 200 2400 DBZ0019
CS924 240 2400 DBZ0019
CS928 280 2400 DBZ0019
CS930 300 3600 DBZ0019

Go to the fan engine tab.
