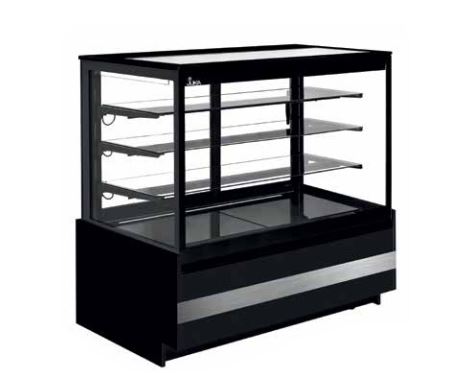

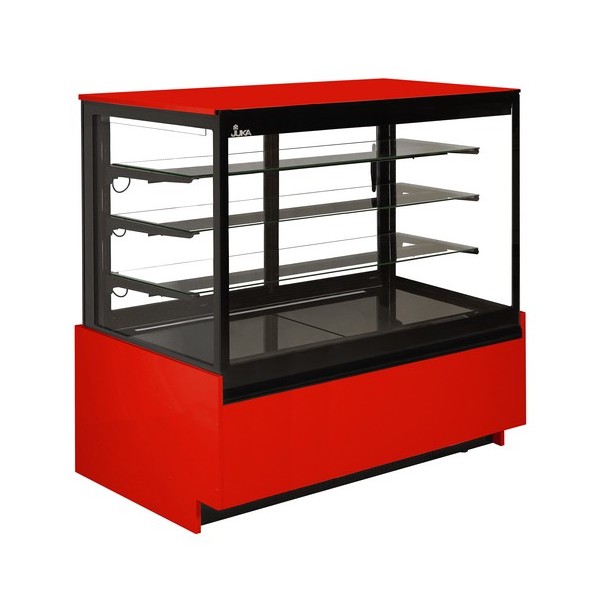

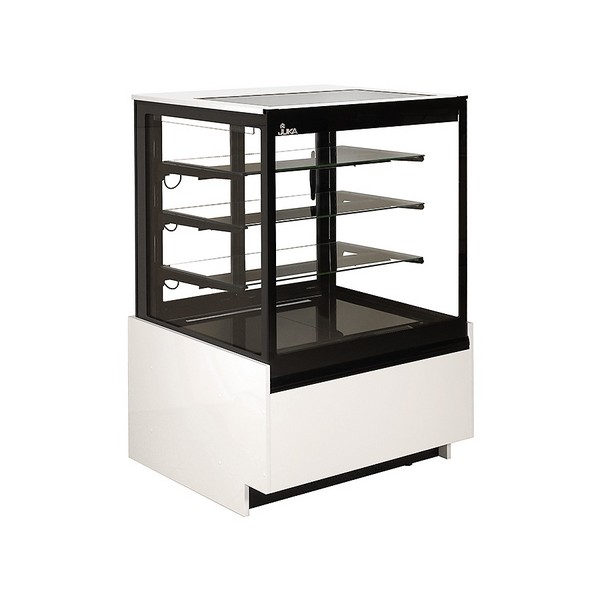

Cool stand Rafaello

JUKA Rafaello stands elegantly exposes your chilled products.

Exterior is the clad lacquered wooden gables.

It is equipped with fan cooling, 3 LED illuminated adjustable glass shelves (in the cooled and stainless shelves in the warm) + bottom, automatic defrosting, dry water dryer and is moisture controlled.

Sliding glass doors on the staff side. The cooled booths have a temperature range between + 4 °… + 10 ° C and the hot + 40 ° C… + 90 ° C.

The stands can be assembled in line and can also be combined with a checkout counter (see below). It is available as cooled with front glass (CH) neutral (NE), warm (GR) or for C cooling.

Rafaello 60 CH
Dimensions: 645x850x1370mm
Cargo capacity: 3 shelves + bottom
Temperature range: + 4 ° C… + 10 ° C
Led lighting
Connection: 230V / 900W, R290

Rafaello 90 CH
Dimensions: 945x850x1370mm
Cargo capacity: 3 shelves + bottom
Temperature range: + 4 ° C… + 10 ° C
Led lighting
Connection: 230V / 1000W, R290

Rafaello 130 CH
Dimensions: 1345x850x1370mm
Cargo capacity: 3 shelves + bottom
Temperature range: + 4 ° C… + 10 ° C
Led lighting
Connection: 230V / 1250W, R290
